Name: 2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: خط الثقاف التلقائي المصغر
Price: 26,500.00 USD
Availability: InStock

المنزل > المنتجات > قطع لطول وتقطيع الخط >

2025 high speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

hydraulic slitter slitting line machine,high speed slitting line with uncoiler,slitting line machine with recoiler

high speed slitting line with uncoiler

slitting line machine with recoiler

مكان المنشأ:

البر الرئيسى للصين

اسم العلامة التجارية:

FAMOUSE

إصدار الشهادات:

ISO, CE

رقم الموديل:

خط الثقاف التلقائي المصغر

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

اسم المنتج:

خط الثقاف البسيط عالي السرعة المصغرة مع عدم التخلص من الهيدروليكي والارتداد

قطع المواد:

Galvalume ، المجلفن ، PPGI ، الألومنيوم

سمك المواد:

0.3 ملم -3 ملم

سرعة العمل:

8 م /دقيقة - 30 م /دقيقة (يمكن تخصيصها)

وزن الملف:

5 أطنان / 7 أطنان / 10 أطنان (يمكن تخصيصها)

قطع القطع:

2 - 30 قطعة

وزن الآلة:

13000 كجم

دقة عرض القطع:

± 0.01 - ± 0.05 مم

إبراز:

hydraulic slitter slitting line machine,high speed slitting line with uncoiler,slitting line machine with recoiler

high speed slitting line with uncoiler

slitting line machine with recoiler

شروط الدفع والشحن

الحد الأدنى لكمية

1 مجموعة خط الإنتاج

الأسعار

negotiable

تفاصيل التغليف

2 قطعة 40 'FLC

وقت التسليم

60 يوم عمل

شروط الدفع

L/C ، D/A ، D/P ، T/T

القدرة على العرض

5 مجموعات لكل 60 يومًا

منتجات ذات صلة

فيديو

2025 Factory Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

احصل على أفضل سعر

فيديو

2025 New Price 40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

احصل على أفضل سعر

تسوية لفائف السمك الثقيل المعدني الصلب 1.5 مم 1200 مم PPGI

احصل على أفضل سعر

فيديو

خط شق لفائف الصلب بسرعة 40 متر/دقيقة مع فك ولف هيدروليكي

احصل على أفضل سعر

اتصل بنا

86-317-2016816

اتصل الآن

وصف المنتج

2025 High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

40m/min High Speed Slitter Slitting Line Machine With Hydraulic Uncoiler And Recoiler

Product Specifications

Attribute	Value
Product Name	Simple High Speed Mini Slitter Slitting Line With Hydraulic Uncoiler And Recoiler
Cutting Material	Galvalume, Galvanized, PPGI, Aluminum
Material Thickness	0.3 mm - 3 mm
Working Speed	8 m/min - 30 m/min (can be customized)
Coil Weight	5 tons / 7 tons / 10 tons (can be customized)
Slitting Pcs	2 - 30 pcs
Machine Weight	13000 KG
Cutting Width Precision	± 0.01 - ± 0.05 mm

Product Description

The mini slitter line can become an ideal support if the product includes a great variety of coils with reduced widths in which it is certainly not economical to use a large line for cutting coils under 300 mm and especially when very reduced spaces are necessary because of the product type.

Furthermore, the mini-line makes it possible to reach considerable speeds, up to 500 m/min. Other specifications: coil width from 300 mm to 600 mm, coil weight from 3 to 8 Ton, material thickness from 0.2 to 3.2 mm, and automatic decoiling by drawing or by loop.

Recommended for producing narrow coils, but especially a fast line for small spaces and particularly suitable for brass, copper, aluminium, tinfoil and lamination steel but also for cold-rolled, galvanized and prepainted materials and stainless steel.

Main Technical Specifications

No.	Item	Description
1	Main Specification	Raw Material: Galvanized, Aluminum, Color steel, Hardness 235MPa - 485MPa Raw Material Thickness: 0.3 mm - 3.0 mm Raw Material Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Tape Outer Diameter: φ 1600 mm Coil Weight: 5 tons - 10 tons Slitting No.: Max 30 pcs The Highest Slitting Line Speed: 8 m/min - 30 m/min Minimum Cutting Line Width: 35 mm Cutting Width Precision: ± 0.01 - ± 0.05 mm Rated Operational Voltage: 240 V, 3 Phase, 60 Hz Total Weight: 13000 KG Working Space (LW): 20000 mm6000 mm

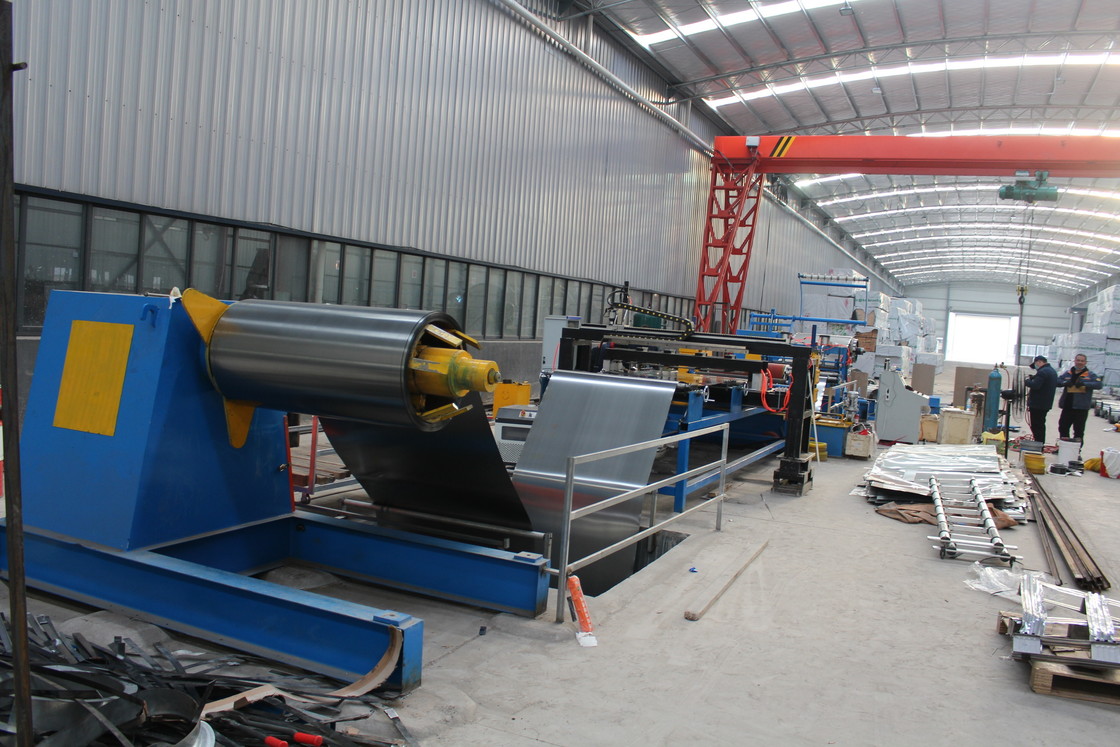

2	Decoiler Machine Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 tons - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 480 mm - φ 530 mm Shaft Diameter: φ180 mm Roller Effective Length: 1600 mm Drive Motor Power: 5.5 KW Loading Car Diameter: φ 700 mm - φ 1500 mm Loading Car Weight: 5 tons - 10 tons Car Speed: About 4 m/min

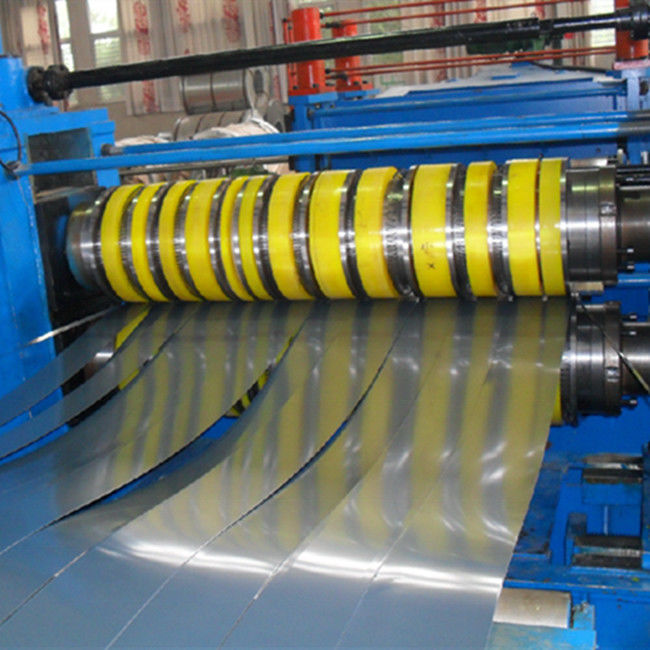

4	Slitting Machine Specification	Cutting Width: Max φ 1600 mm Cutting Thickness: 0.3 mm - 2.0 mm Cutter Shaft Diameter: φ180 mm Cutter Shaft Material: Cr 40 Cutter Size: 200 mm300 mm15 mm Cutter Material: Cr12MoV Cutter Spacer Size: 180 mm240 mm15 mm Drive Motor: 15 kw Cutting No.: 2-30 pcs Cutter No.: Max 32 pcs

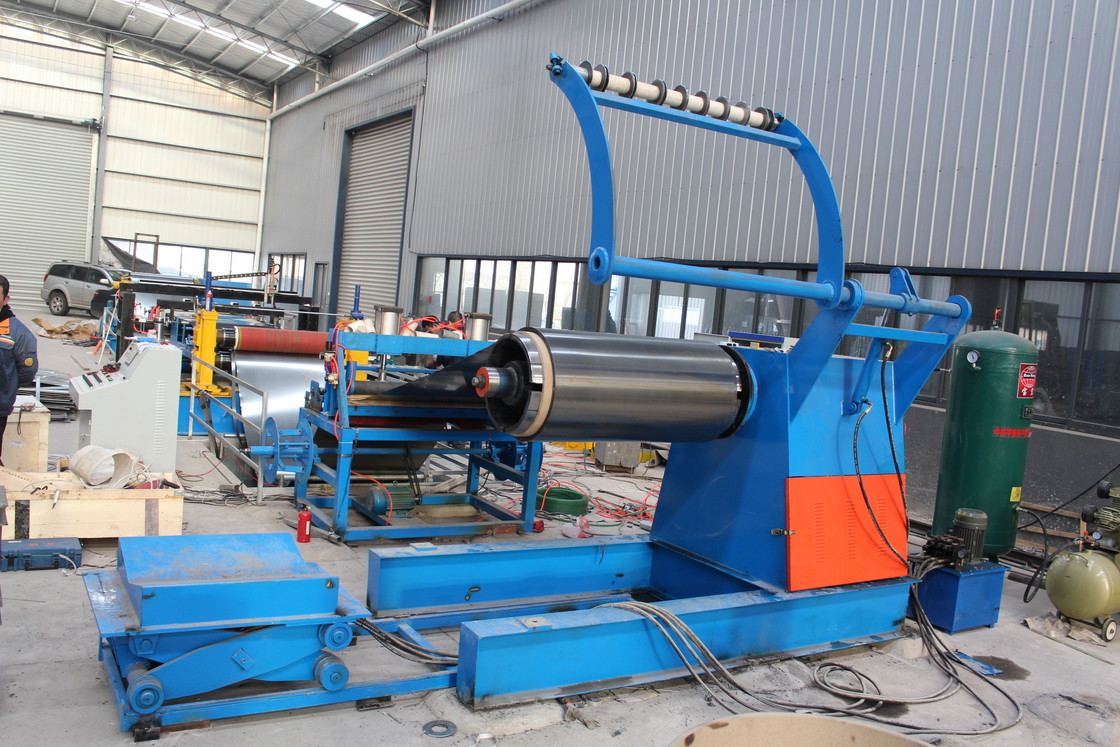

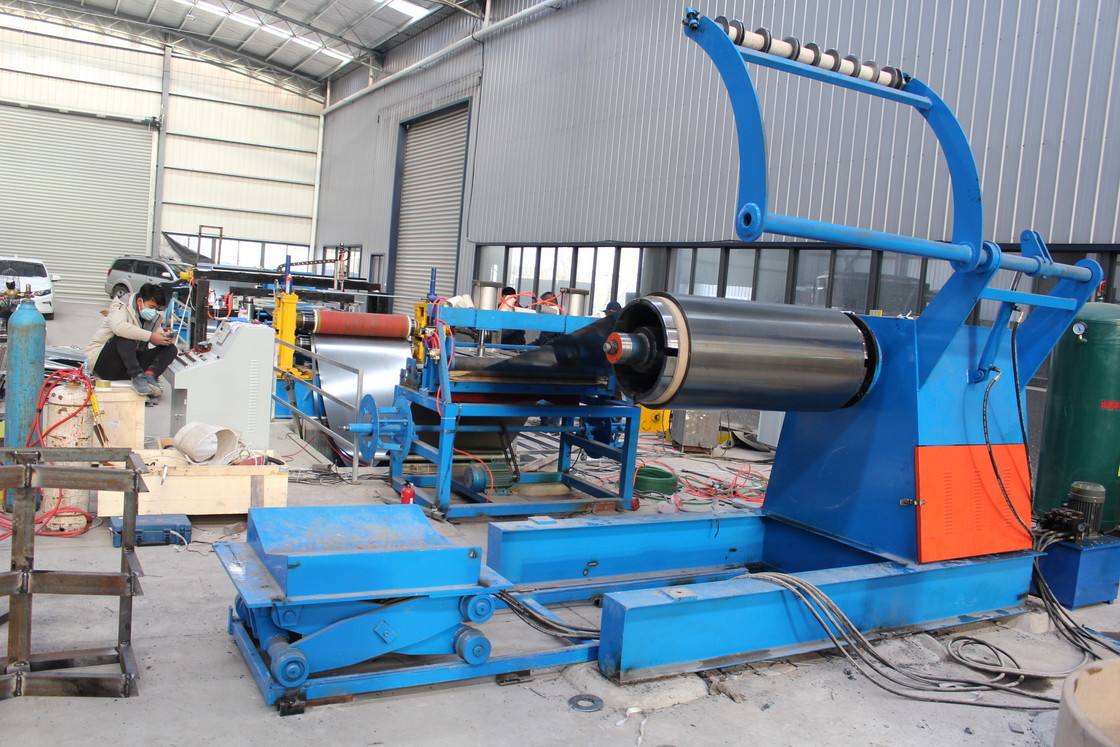

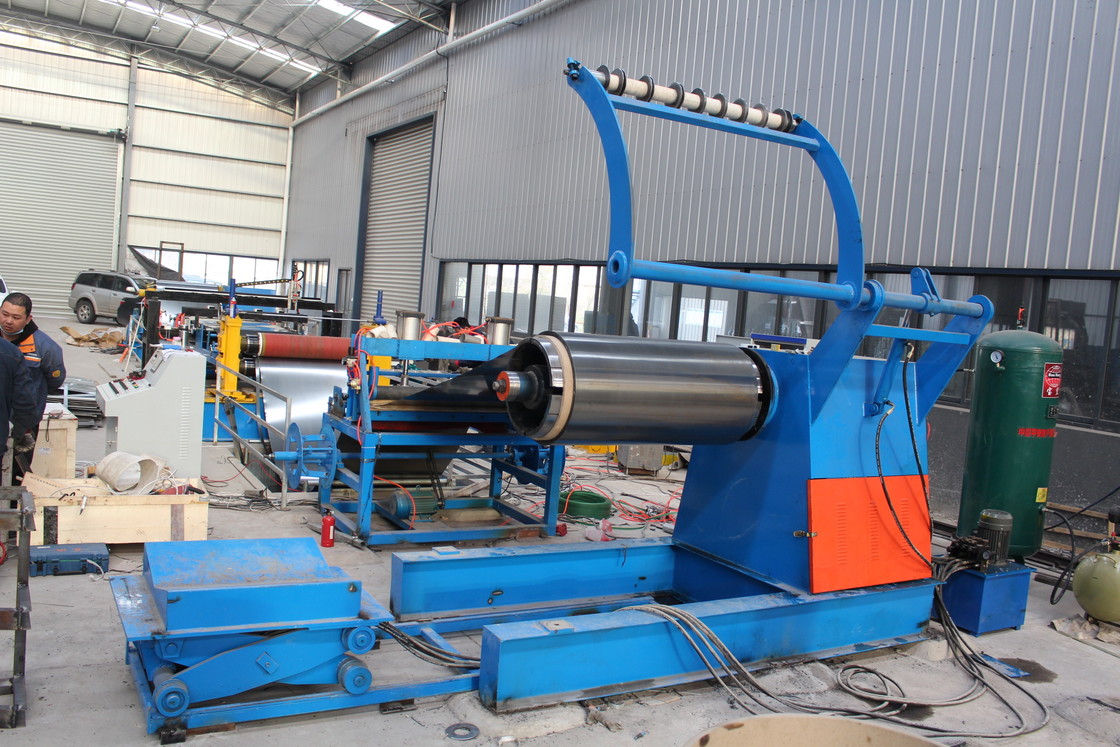

7	Recoiler Specification	Tape Outer Diameter: Max φ 1600 mm Tape Width: 600 mm - 1600 mm Tape Inner Diameter: φ 480 mm - φ 530 mm Coil Weight: 5 - 10 tons Max Working Speed: 8 m/min - 30 m/min Tape Tight Range: φ 485 mm - φ 530 mm Shaft Diameter: φ 180 mm Roller Effective Length: 1750 mm Drive Motor Power: 30 kw Loading Car Diameter: φ 1000 mm - φ 1750 mm Loading Car Weight: Max 10 tons Car Speed: About 4 m/min
9	Electrical Control System	2 sets. Computer Control System is Siemens PLC.
10	Edge Collecting Machine	Drive Motor: 3 kw Collecting Material Width: Max 20 mm Double Edge Width: 400 mm

Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 years after date of purchase except Electrical parts.
Repairs will not be performed even during the guarantee period in the follow circumstances:
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation

Payment Terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.

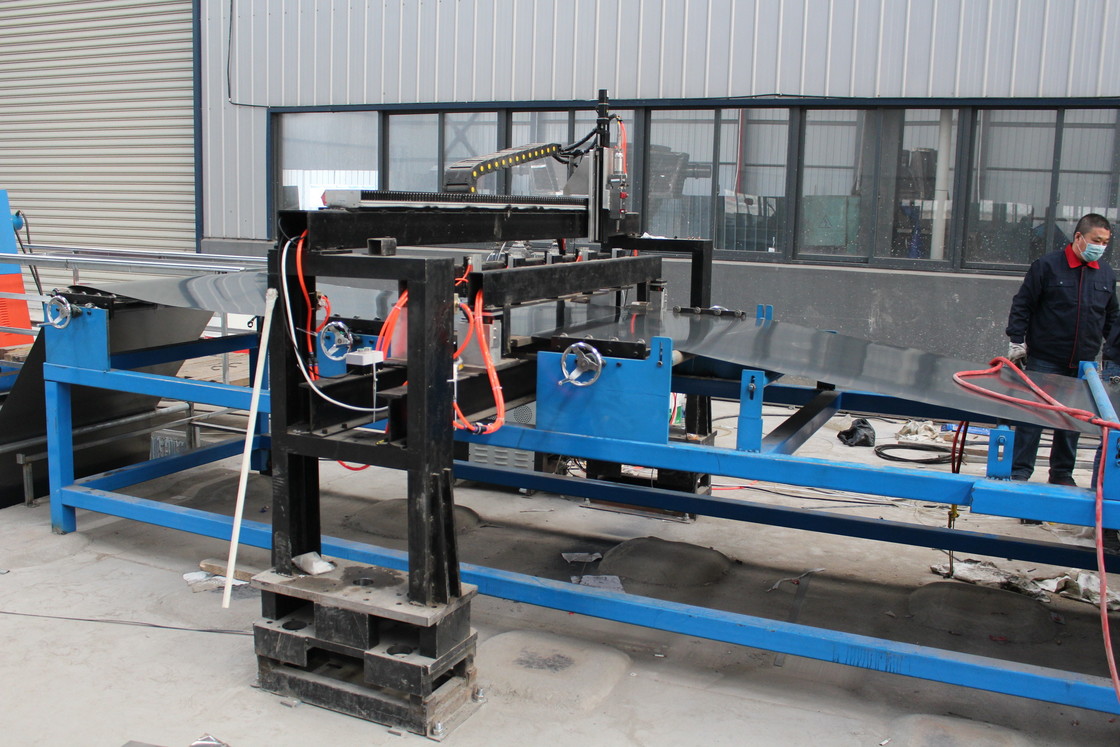

Product Images
